Daiwa

EM MS
2016.03 DEBUT

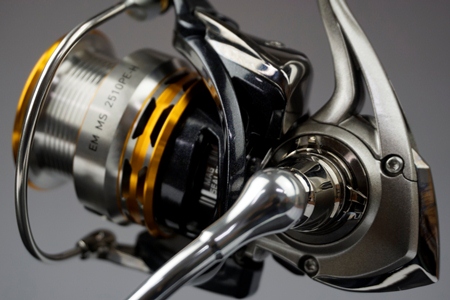

Daiwa   EM MS 2510PE-H

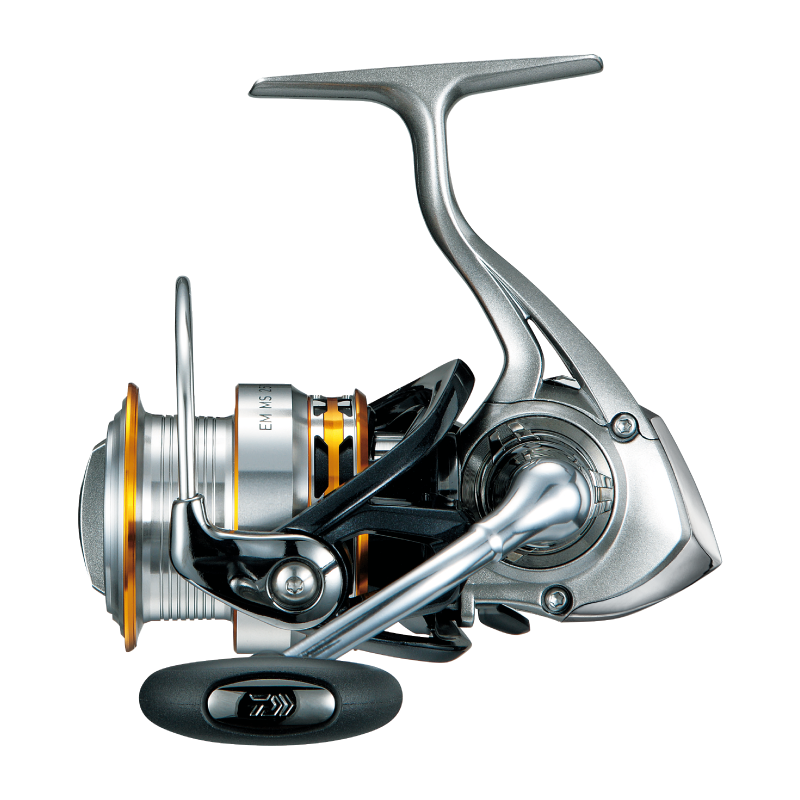

EM MS 2510PE-H



DAIWA TECHNOLOGY

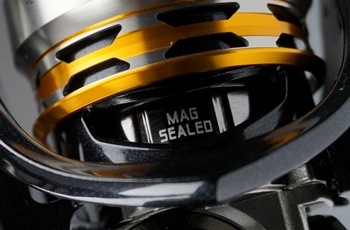

MAG SEALED
Daiwa's original waterproof structure to shut out invasions such as seawater or the dust by making a wall of the oil with magnetism in the gap of a body and the rotor. Because a body and a rotor are no points of contact, the slightly fluent turn just maintains early rotary performance for a long term. Most of causes of the rotary abnormal noise are the invasions of salt K~, the alien substance. Except the cases which a mistake drops in water, the turn abnormal noise incidence of the reel made a mug shield largely decreases. Besides, this ratio is appearing for the data for a bigger difference so as to pass if time passes. The effect being shown more as much as this is long and uses it. In other words, it is the proof of there being ability for protection against dust, waterproofing of the mug shield in a very high level.

ATD
New generation Drag System which continues working while following the pull of the fish smoothly. Conventionally, because a start is smooth, a line is hard to break through and rarely lets you act violently idly because it is hard to give a fish a sense of incongruity. In addition, it decreases that a feeling of operation includes unique tenacity and is run in the low Drag set point at a stretch and the frequency of fight Drag readjustments decreases and can concentrate on fight.

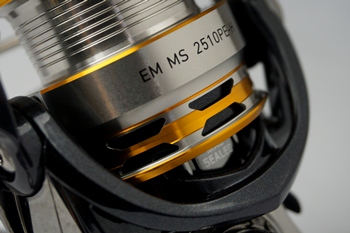

Air rotor
Daiwa's original rotor which realized large lightweighting at the strength that was equal to before by scattering load by the most suitable rim structure of the specific shape. The rotor balance improves, too, and get an illusion if is smooth in what play by inertia;, not an impracticable turn, a response well, so to speak, reacts to own will instantly.

ZAION Body
The material which enabled impossibility to exceed magnesium at weight ratio strength with the carbon resin which carbon fiber was incorporated in densely. I keep it alive, and, high stiffness and light weight, an ideal characteristic to resist corrosion is adopted in the main parts of the reel unlike metal more.

The specifications details

Function, specifications Characteristic

DS5 (rotor material) Fiber reinforcement special plastic for exclusive use of the reel produced in Daiwa's original technique.

Aluminum spool A rigidly lightweight and superior metal spool.

Foldable
Aluminum machine cut handle
The stable high-stiffness machine cut steering wheel which rolls it up,
and brings a sense. Because it isfoldable, it is convenient for carrying around.

ABS II The spool structure that a line is released without a trouble, and a flying distance increases.
The line trouble that it is large-diameter, and the line the spool ahead becomes hard to be pushed
by making a rewind side inversely tapered and did including backlash is a sharp decrease.
The large-diameter spool contributes to rewind speed and drag performance gain.
I review a spool ring bridge, and ABS II reduces the resistance in the cast.
Long cast performance increases more.

Cross Wrap A method to cross to prevent the gap of encroaching and the thread
of the line to the spool winding thread region by adopting the big cloth beating bar method
of the winding thread angle, and to wind off. The realization that the decrease
in line trouble is remarkable when I use fine string in particular and a PE line,
and is comfortable at the same time.

Air veil A veil shape to let a thread-involved trouble decrease sharply
by sending you out to flow through the thread to a line roller.
Furthermore, I realize large strength up without changing the weight by making a hollow structure.

Twistbuster II The structure that largely canceled thread twist
which occurred by the roller turn that was said to be fate of the spinning reel
by tapering a line roller, and rolling a thread.

Line roller BB I contribute to improvement and thread twist reduction
of the further rotary feeling by putting BB on the line roller part.

Rotor brakes Mechanism to prevent the unexpected veil return marks by a handle working
by the shock in the cast by braking the turn of the rotor at the time of veil opening.

Rial Stopper Mechanism to cancel the come-from-behind gutter
of the rotor steering wheel by the special one way clutch in the body,
and to enable a tight, highly precise hoist.


EM MS
Item
name
Gear
Ratio
Weight
(g)
Max Drag
(kg)
Line Capacity
(lb-m)
(PE-m)
Line Per
Handle
Turn
(cm)
Bearing Catalog
Price
Price
[JPY]
Ball Roller
2004 4.8 205 2 3lb-140m
4lb-100m
64 6 1 20,900 \15,675
PE 0.4-120m
PE 0.6-100m
2004H 5.6 205 2 3lb-140m
4lb-100m
75 6 1 20,900 \15,675
PE 0.4-120m
PE 0.6-100m
2506 4.8 215 3 5lb-140m
6lb-100m
72 6 1 21,400 \16,050
PE 0.8-130m
PE 1-100m
2506H 5.6 215 3 5lb-140m
6lb-100m
84 6 1 21,400 \16,050
PE 0.8-130m
PE 1-100m
2508PE-H 5.6 220 7 5lb-160m
6lb-120m
84 6 1 21,400 \16,050
PE 0.8-150m
PE 1-120m
2510PE-H 5.6 215 7 8lb-150m
12lb-100m
84 6 1 21,400 \16,050
PE 1-200m
PE 1.5-150m
3012 4.7 250 7 12lb-150m
16lb-100m
79 6 1 22,800 \17,100
PE 1-280m
PE 1.5-200m
3012H 5.6 250 7 12lb-150m
16lb-100m
95 6 1 23,300 \17,475
PE 1-280m
PE 1.5-200m
3500H 5.7 340 8 16lb-200m
20lb-150m
97 6 1 24,000 \18,000
PE 2-300m
PE 3-200m
4000H 5.7 340 8 16lb-250m
20lb-200m
101 6 1 24,000 \18,000
PE 2.5-300m
PE 3-250m
