| GEKKABIJIN EX |
|
|
| DEBUT on Apr 17' |
 |

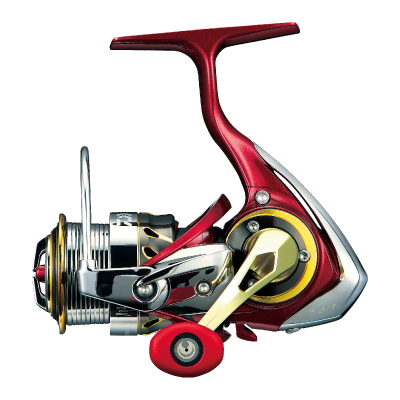

| GEKKABIJIN EX 1003RH |
|
| Light SW high-end model with overwhelming presence |
|
Equipped with a mag shield ball bearing in addition to a mag shield, this
model firmly protects the rotation performance
which can besaid to be the life of a light salt water game from the deterioration
caused by salt garbage. Also,
you can not compromise on drag performance in a game using thin threads.
ATD (automatic drag system)
also allows you to use a thin thread of 1 rank, even if hooking with a hard rod of a hammer, it firmly absorbs shock and
prevents yarn breakage. Equipped with NEW ZAION made air rotor, it got
the best winding sensitivity
of the monthly beauty series ever. To the body of a fearless design also
a gold crescent shaped engine plate
claiming the moonlit woman, stubbornly stamping the logo on the cap of
the handle knob. Enchant the angler
with overwhelming presence by technology and design. 1003 is an Asian model
centering on small places such as fishing port,
under night light etc. 1003 RH is for long-awaited, for large-sized mackerels
with Caro etc. 2004 C is a meval model of the iron plate. |
|
|
|
|
|
|
| DAIWA TECHNOLOGY |
|
 |
■MAGSEALED
Daiwa's original waterproof and durable technology that shuts out the invasion
of
substances such as water, salt and sand, which is the biggest factor of the decline in reel
performance, with the wall of magnetic oil and keeps the reel's rotation
performance in its initial state Adopted for body and line roller. Furthermore,
"Magshield ball bearing" which applied the technology to the
ball bearing which is the essential part of the rotation
performance is mounted on both ends of the handle shaft. No matter how
excellent rotation performance it is, it will be meaningless unless it
lasts long. The advantage that the initial performance lasts for a long
period of time is that the more you use it in the harsh Saltwater scene
for Lille, the longer the longer you hold it, the stronger you will feel. |
 |
■NEW ZAION made air rotor
Using the rigidity of ZAION (Zion), the rotor realized the extreme lightness
by cutting off even more extravagance. When the parts such as the rotor
and the steering wheel are reduced in weight, the inertia force at the
time of rotation becomes small, and the resistance feeling when turning
the steering wheel decreases. This makes it easier to sense the change
in underwater resistance, resulting in the merit that changes in movement
of Atari and
lure during retrieval are more easily discriminated. The air rotor also
features not only lightness but also high strength. The arch structure
of the air rotor distributes the load in a well-balanced manner, and can
maintain high strength with less mass. |
 |
■ATD (Finesse)
..In addition to the frictional force between the conventional washers,
the effect starts smoothly due to the effect of the grease film (like an
oil film) of the special grease, keeps working while automatically changing
the effectiveness according to the pulling of the fish. Moreover, because
it does not become a goulzulu, the fish is not taken the initiative. In
light
SW scenes where 1.5 lb and 2 lb are becoming mainstream now, the adoption
of ATD which is friendly to fine threads is an overwhelming advantage.
By the appearance of this drag, it is easy to prevent the line break even
in the schedule of the sudden rake and the ruler meval. Moreover, even
unexpected mouth break of weak fish like horse mackerel can be kept to
a minimum. It is a level that is not an exaggeration to say that "Finesse
drag of the highest in Daiwa history" is its capability. |
 |
■ZAION (Zion) body
It is a carbon resin with carbon fiber woven into high density, and if
it is in the same weight ratio, the rigidity (flexural modulus) is not
less than magnesium known as ultra light metal. Furthermore, being strong
in "rust" because it is a carbon resin is a great merit that
can not be imitated by metals. It is no exaggeration to say that it is
just "a material born to become a reel". A small signal from
underwater, which is felt because it boasts high rigidity while being lightweight.
Its high sensitivity becomes a powerful weapon with light SW scene, which
is increasingly becoming lighter and more sensitive to tackle. |
|
|
|
|
|
|
|
|
|
|
| The specifications details |
|
| Function, specifications |
Characteristic |
|
| Air spool |
.IP (ion plating) is directly applied to the spool edge for plating, realizing
weight reduction while having a soft hardness for threads. On the casting
side, it is a synergistic effect with ABS II to achieve both
flight distance and trouble-less performance. |
|
| Aluminum machine cut handle |
High rigidity machine cut handle giving a sense of stable winding up. |
|
| Machine cut Digi gear (Ultra duralumin) |
Daiwa's proprietary digital design technology and ultra-duralumin forging
machine cut digi gear by high precision machine cutting process produces
a smooth and powerful retrieve feeling. |
|
| Linear shaft |
The structure that supports the main shaft and the pinion gear independently
eliminates the frictional resistance between them and reduces the power
loss to the limit even during winding at high load. |
|
| ABS Ⅱ |
A spool structure in which the line is released without trouble, and the
flight distance extends. By making the winding surface inversely tapered
with a large diameter, the line ahead of the spool is hard to be pushed out,
the line trouble starting with the backlash drastically decreases. Large
caliber spool also contributes to improve winding speed and drag
performance. ABS II reviews the shape of the spool ring and reduces
resistance during casting. More far distance performance is increasing. |
|
| Cross lap |
By adopting a cheese winding method with a large winding angle, a method of
winding up by crossing in order to prevent biting into the spool winding
part and deviation of the yarn. The reduction of line trouble is remarkable
especially when thin threads and PE line are used, and realizing comfortable
flight at the same time. |
|
| Air bail |
Bale shape which drastically reduces trouble of thread entanglement by
sending thread so as to flow to the line roller. Furthermore, by making it
hollow structure, we realized a great increase in strength without changing
weight. |
|
| Twistbuster II |
Structure which greatly eliminated yarn sticking caused by roller rotation
which was said to be fate of spinning reel by rolling thread by tapering
line roller |
|
| Line roller BB ( 2 BB) |
By installing ball bearings in the line roller part, it contributes to
further improvement of feeling of rotation and reduction of yarn strain. |
|
| Rotor brakes |
Mechanism to prevent the unexpected veil return marks
by a steering wheel working by the shock in the cast
by braking the turn of the rotor at the time of veil opening. |
|
| Real Infinite Stopper |
Mechanism that eliminates backlash of the rotor handle by the special
one-way clutch inside the body, enabling tight and highly accurate winding
up. |
|
| Shower cleaning possible |
Can be washed with running water. (Maintenance according to the instruction
manual is required after cleaning) |
|
|
|
|
|
