| MORETHAN |
|
|
| DEBUT on Mar 17' |
 |
 |
| MORETHAN 2510PE-H |

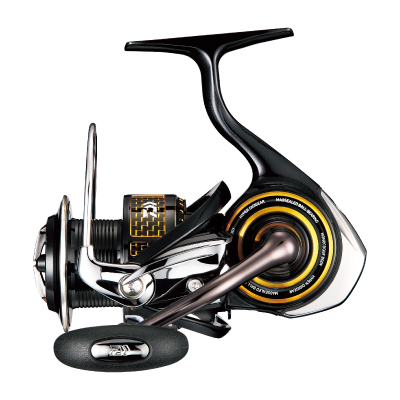

MORETHAN 3500 |
|
| Sea bass exclusive flagship keeping pursuing essence spinning reel |
|
Flagship spinning exclusively for sea bass, which was developed to target
all directions of sea bass that can be aimed at Shore games, "to catch
as many as one". Mug shield with waterproof performance, initial rotation
performance maintained for a longer period, Magshield ball bearings mounted
on both ends of drive gear. Further deepening with ATD which pursued sliding
and following ability. It adopts ZAION made air rotor which combines strength
and lightness, and also features the light initial handle of the handle.
Corresponds to trends and other changing conditions. It combines the tales
of Daiwa Technology so that you can enjoy not only the power but also comfortably.
2510 PE-H is an all-rounder with a wide adaptation range centered on the
bay front area. With rich line capacity, not only the long throw but also
the high gear specification assumed for use in the day game. 3012H with
the best specification for shore games is a model that combines the goodness
of handling and power at high dimensions. Supporting Sea Bass Angler with
a comfortable feeling even in river basins in tough sea bass games. 3500
is a new face of Moaisan. High rigidity monocoque body dramatically improves
rotation performance and waterproof performance. Equipped with a line capacity
assuming a ranker size, it corresponds also to a large Hirasuki in an iso
game. |
|
|

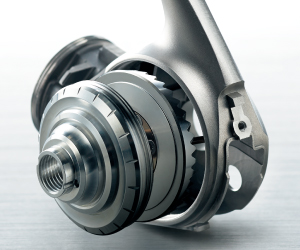

| What is monocoque body (※ 3500 only) |
|
| Conventionally, the spinning reel was a system in which both ends of a
drive gear are supported by a body and a body cover and fixed by several
screws. Aiming at accuracy and rigidity exceeding this structure, the monocoque
body was fixed by screwing a high precision plate directly into the body
without wasting the body cover. This increases the support accuracy of
the gear, improves the rigidity and airtightness. Furthermore, we succeeded
in expanding the size of the drive gear to the limit by making use of the
space conventionally taken in the screw. Monocoque body means MONO (one)
- COQUE (shell). A completely new asymmetrical design symbolizing the toughness
of a single shellfish seems to predict the arrival of a new era in which
Daiwa's technology breaks down the common sense of reel structures one
more time. |
 |
|
|
|
| DAIWA TECHNOLOGY |
|
 |
■MAGSEALED
Daiwa's original waterproof structure that shuts out the invasion of
seawater and dust by making a wall of magnetic oil and maintains light and
smooth initial rotation performance for a long time, adopted for main shaft
part and line roller. Furthermore, on both ends of the handle shaft are
mounted "magshield ball bearings" which are mag shielded ball bearings
themselves, which is the essential part of the rotational performance.
Waterproofness, durability and rotation performance are further improved. |
 |
■AIR ROTOR
An air rotor with a structure to say also as a rotor revolution. By
distributing the load with an optimal rim structure with a unique shape, it
realizes substantial weight saving with the same strength as before. Rotor
balance is also improved, resulting in good rotation of response. |
 |
■ATD (Automatic Drag System)
.A new generation drag system that keeps on working while smoothly following
the fish pull. It is harder to break a line because it is smooth than
before, and it is hard to make a fish run unnecessarily because it is hard
to give a sense of incompatibility. In addition, there is a unique
stickiness in the feeling of operation, even with a low drag setting value
runs at a stroke decreasing, the frequency of drag recalibration during
fight decreases and you can concentrate on fighting. |
 |
■ZAION
It is a carbon resin with carbon fiber woven into high density, making it
impossible to exceed magnesium by weight strength. It is adopted as the main
part of the reel taking advantage of the ideal characteristic that it is
high rigidity and light weight, and furthermore it is resistant to
corrosion, unlike metals. |
|
|
|
|
|
|
|
|
|
|
| The specifications details |
|
| Function, specifications |
Characteristic |
|
| Super Metal Body |
Special rigid aluminum material. Because the outside is solid, the
engagement of the internal gear does not go wrong. Prevents twisting and
strain at high load, smooth rotation, strong winding force, high durability. |
|
| Carbon hybrid spool |
Spool of lightweight and rigid carbon hybrid material. |
|
| Aluminum machine cut handle |
High rigidity machine cut handle giving a sense of stable winding up. |
|
| Hyper Digi Gear |
Adopting C6191, which has 1.6 times the strength of duralumin as the drive
gear material, it has dramatically improved strength and durability by
further increasing the diameter. Here, the shape of the tooth surface was
fundamentally reviewed by computer analysis, and a process not allowing
micro error was added, and "Hyper Digi Gear" was born. Ideal
meshing with the
pinion brings out a very powerful hoisting force as well as silky rotation. |
|
| Linear shaft |
The structure that supports the main shaft and the pinion gear independently
eliminates the frictional resistance between them and reduces the power loss
to the limit even during winding at high load. |
|
| ABS Ⅱ |
A spool structure in which the line is released without trouble, and the
flight distance extends. By making the winding surface inversely tapered
with a large diameter, the line ahead of the spool is hard to be pushed out,
the line trouble starting with the backlash drastically decreases. Large
caliber spool also contributes to improve winding speed and drag
performance. ABS II reviews the shape of the spool ring and reduces
resistance during casting. More far distance performance is increasing. |
|
| Cross lap |
By adopting a cheese winding method with a large winding angle, a method of
winding up by crossing in order to prevent biting into the spool winding
part and deviation of the yarn. The reduction of line trouble is remarkable
especially when thin threads and PE line are used, and realizing comfortable
flight at the same time. |
|
| Air bail |
Bale shape which drastically reduces trouble of thread entanglement by
sending thread so as to flow to the line roller. Furthermore, by making it
hollow structure, we realized a great increase in strength without changing
weight. |
|
| Twistbuster II |
Structure which greatly eliminated yarn sticking caused by roller rotation
which was said to be fate of spinning reel by rolling thread by tapering
line roller |
|
| Line roller BB ( 2 BB) |
By installing ball bearings in the line roller part, it contributes to
further improvement of feeling of rotation and reduction of yarn strain. |
|
| Rotor brakes |
Mechanism to prevent the unexpected veil return marks
by a steering wheel working by the shock in the cast
by braking the turn of the rotor at the time of veil opening. |
|
| Real Infinite Stopper (※Excluding 3500) |
Mechanism that eliminates backlash of the rotor handle by the special
one-way clutch inside the body, enabling tight and highly accurate winding
up. |
|
| Shower cleaning possible |
Can be washed with running water. (Maintenance according to the instruction
manual is required after cleaning) |
|
|
|
|
|
