Daiwa
THEORY
DEBUT on Sep 17'

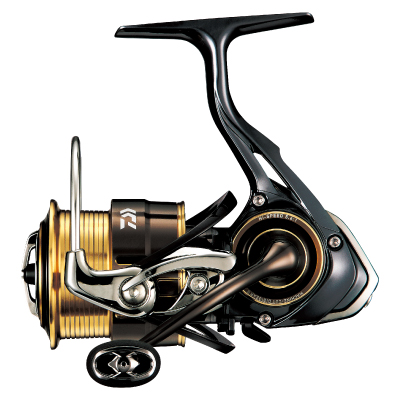

Daiwa THEORY 2506H
THEORY 2506H


Lightness beyond class. Multifunction equipped high value model

Magshield, ZAION made ultra lightweight air rotor (3500 E 4000 size made by DS 5), ATD and other models incorporating state of the art Daiwa Technology. New type compact body + ZAION rotor realized 185 g (2506/2506 H). Pull out
the best performance of Angler.

DAIWA TECHNOLOGY

”MAGSEALED
Daiwa's own waterproof structure that shuts out invasion of seawater and
dust by making a wall of magnetic oil in the gap between the body and rotor.
Since the body and rotor are contactless, keep the initial smooth rotation
performance for a long period, while keeping light and smooth rotation. Many
causes of rotation abnormal sounds, invasion of salt garbage and foreign
matter. Except for the case where it falls into water too much, the rotation
abnormal sound generation rate of the mag shielded reel has drastically
decreased. Moreover, this ratio is appearing in the data as a bigger
difference as time passes. This means that the longer you use it, the better
its effect will be. That is, it is a proof that the dustproof and waterproof
capability of the magshield is at a very high level.
”AIR ROTOR
An air rotor with a structure to say also as a rotor revolution. By
distributing the load with an optimal rim structure with a unique shape, it
realizes substantial weight saving with the same strength as before. Rotor
balance is also improved, resulting in good rotation of response.
”ATD (Automatic Drag System)
.A new generation drag system that keeps on working while smoothly following
the fish pull. It is harder to break a line because it is smooth than
before, and it is hard to make a fish run unnecessarily because it is hard
to give a sense of incompatibility. In addition, there is a unique
stickiness in the feeling of operation, even with a low drag setting value,
running at a stroke decreases, the frequency of drag recalibration during
fight decreases and you can concentrate on fighting.
”ZAION
It is a carbon resin woven with carbon fiber at high density, making it
impossible to exceed magnesium by weight strength. It is adopted as the main
part of the reel taking advantage of the ideal characteristic that it is
high rigidity and light weight, and furthermore it is resistant to
corrosion, unlike metals.

The specifications details

Function, specifications Characteristic

DS5
(Rotor material ¦3500 4000 size only)
Fiber reinforced special plastic reinforced only by Daiwa's original technology.

Aluminum spool Lightweight and rigid metal spool.

Aluminum machine cut handle High rigidity machine cut handle giving a sense of stable winding up.

Machine cut Digi gear Daiwa's proprietary digital design technology and duralumin forging machine
cut digging gear by high precision machine cutting process produces a smooth
and powerful retrieve feeling.

Linear shaft The structure that supports the main shaft and the pinion gear independently
eliminates the frictional resistance between them and reduces the power loss
to the limit even during winding at high load.

ABS ‡U A spool structure in which the line is released without trouble, and the
flight distance extends. By making the winding surface inversely tapered
with a large diameter, the line ahead of the spool is hard to be pushed out,
the line trouble starting with the backlash drastically decreases. Large
caliber spool also contributes to improve winding speed and drag
performance. ABS II reviews the shape of the spool ring and reduces
resistance during casting. More far distance performance is increasing.

Cross lap By adopting a cheese winding method with a large winding angle, a method of
winding up by crossing in order to prevent biting into the spool winding
part and deviation of the yarn. The reduction of line trouble is remarkable
especially when thin threads and PE line are used, and realizing comfortable
flight at the same time.

Air bail Bale shape which drastically reduces trouble of thread entanglement by
sending thread so as to flow to the line roller. Furthermore, by making it
hollow structure, we realized a great increase in strength without changing weight.

Twistbuster II Structure which greatly eliminated yarn sticking caused by roller rotation
which was said to be fate of spinning reel by rolling thread by tapering
line roller

Line roller BB (1 BB) By installing ball bearings in the line roller part, it contributes to
further improvement of feeling of rotation and reduction of yarn strain.

Rotor brakes Mechanism to prevent the unexpected veil return marks
by a steering wheel working by the shock in the cast
by braking the turn of the rotor at the time of veil opening.

Real Infinite Stopper Mechanism that eliminates backlash of the rotor handle by the special
one-way clutch inside the body, enabling tight and highly accurate winding up.

Shower cleaning possible Can be washed with running water. (Maintenance according to the instruction
manual is required after cleaning)



THEORY
Item
name
Gear
Ratio
Weight
(g)
Max Drag
(kg)
Line Capacity
Nylon Line(lb-m)
PE Line (PE-m)
Line Per
Handle
Turn
(cm)
Bearing Catalog
Price
Price
[JPY]
Ball Roller
1003 4.8 155 2 2lb-150m
3lb-100m

PE 0.3-120m
PE 0.4-100m
60 7 1 30,000 \22,500
2004 4.8 175 2 3lb-140m
4lb-100m

PE 0.4-120m
PE 0.6-100m
64 7 1 30,500 \22,875
2004H 5.6 175 2 3lb-140m
4lb-100m

PE 0.4-120m
PE 0.6-100m
75 7 1 30,500 \22,875
2506 4.8 185 3 5lb-140m
6lb-100m

PE 0.8-130m
PE 1-100m
72 7 1 31,000 \23,250
2506H 5.6 185 3 5lb-140m
6lb-100m

PE 0.8-130m
PE 1-100m
84 7 1 31,000 \23,250
2508PE 4.8 195 7 2lb-150m
3lb-100m

PE 0.8-150m
PE 1-120m
72 7 1 31,000 \23,250
2508PE-H 5.6 190 7 5lb-160m
6lb-120m

PE 0.8-150m
PE 1-120m
84 7 1 31,000 \23,250
2508PE-DH 4.8 200 7 5lb-160m
6lb-120m

PE 0.8-150m
PE 1-120m
72 7 1 34,000 \25,500
2510PE-H 5.6 190 7 8lb-150m
12lb-100m

PE 1-200m
PE 1.5-150m
84 7 1 31,000 \23,250
3012H 5.6 220 7 12lb-150m
16lb-100m

PE 1-280m
PE 1.5-200m
95 7 1 33,000 \24,750
3500PE-H 5.7 340 8 12lb-270m
16lb-200m

PE 2-300m
PE 2.5-250m
97 7 1 37,000 \27,750
4000 4.9 335 8 16lb-250m
20lb-200m

PE 2.5-300m
PE 3-250m
86 7 1 37,000 \27,750
4000H 5.7 335 8 16lb-250m
20lb-200m

PE 2.5-300m
PE 3-250m
101 7 1 37,000 \27,750
