Daiwa
X FIRE
DEBUT on Jun 17'

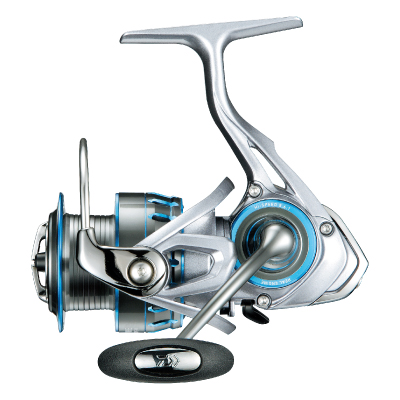

X FIRE 2510PE-H


Lighter and more compact! Exhilarating spinning active in every SW lure scene

High value spinning full of state-of-the-art Daiwa technology such as mug shield, air rotor, and ATD in a new lightweight compact body made of ZAION which was largely lightened. Refreshing body color with brilliant blue arranged in bright silver body shines in fishing spot. The lineup is 3 sizes with a reputation which is most easy to use. Although it is a general-purpose model, it exerts a high performance comparable to a special model of various genres. Of course, those who want to start full-scale lure fishing in the sea, as well as high-level performance required by middle to advanced players, will be active in the SW lure scene without leaving.



DAIWA TECHNOLOGY

MAGSEALED
Daiwa's waterproof and durable technology that shuts out the invasion of substances
such as water, salt and sand, which is the biggest factor of the decline in reel performance,
with the wall of magnetic oil and maintains the reel's rotation performance in its initial state.
Furthermore, "Mag Shield Ball Bearing" which applied the technology to the ball bearing
which is the essential part of the rotational performance is mounted on both ends of the
drive gear. No matter how excellent rotation performance it is, it will be meaningless unless
it lasts long. The advantage that the initial performance lasts for a long period of time is that the more you use it in the harsh Saltwater scene for Lille, the longer the longer you hold it, the stronger you will feel.
AIR ROTOR
An air rotor with a structure to say also as a rotor revolution. By
distributing the load with an optimal rim structure of a unique shape, it
realizes substantial weight saving with the same strength as before. Rotor
balance is also improved, resulting in good rotation of response.
ATD
.A new generation drag system that keeps on working while smoothly following
the fish pull. It is harder to break a line because it is smooth than
before, and it is hard to make a fish run unnecessarily because it is hard
to give a sense of incompatibility. In addition, there is a unique
stickiness in the feeling of operation, even with a low drag setting value,
running at a stroke decreases, the frequency of drag recalibration during
fight decreases and you can concentrate on fighting.
ZAION (Zion) body
It is a carbon resin woven with carbon fiber at high density, making it
impossible to exceed magnesium by weight strength. It is adopted as the main
part of the reel taking advantage of the ideal characteristic that it is
high rigidity and light weight, and furthermore it is resistant to
corrosion, unlike metals.

The specifications details

Function, specifications Characteristic

DS5 (rotor material) Fiber reinforced special plastic reinforced only by Daiwa's original technology.

Aluminum spool .Lightweight and rigid metal spool.

Aluminum machine cut handle High rigidity machine cut handle giving a sense of stable winding up.

Digi gear U Daiwa's original digital design technology "Digi Gear" evolved further. In order to realize the ideal tooth surface derived by digital analysis, we adopted super high precision machine cutting technology and realized tooth surface accuracy several times or more than forged gear. Durability is improved by applying special lapping processing to the drive gear and taking the optimal balance between the pinion gear and the drive gear.

Linear shaft The structure that supports the main shaft and the pinion gear independently eliminates
the frictional resistance between them and reduces the power loss
to the limit even during winding at high load.

ABS U A spool structure in which the line is released without trouble, and the
flight distance extends. By making the winding surface inversely tapered
with a large diameter, the line ahead of the spool is hard to be pushed out,
the line trouble starting with the backlash drastically decreases. Large
caliber spool also contributes to improve winding speed and drag
performance. ABS II reviews the shape of the spool ring and reduces
resistance during casting. More far distance performance is increasing.

Cross lap By adopting a cheese winding method with a large winding angle, a method of
winding up by crossing in order to prevent biting into the spool winding
part and deviation of the yarn. The reduction of line trouble is remarkable
especially when thin threads and PE line are used, and realizing comfortable
flight at the same time.

Air bail Bale shape which drastically reduces trouble of thread entanglement by
sending thread so as to flow to the line roller. Furthermore, by making it
hollow structure, we realized a great increase in strength without changing weight.

Twistbuster II Structure which greatly eliminated yarn sticking caused by roller rotation
which was said to be fate of spinning reel by rolling thread by tapering
line roller

Line roller BB ( 1BB) By installing ball bearings in the line roller part, it contributes to
further improvement of feeling of rotation and reduction of yarn strain.

Rotor brakes Mechanism to prevent the unexpected veil return marks
by a steering wheel working by the shock in the cast
by braking the turn of the rotor at the time of veil opening.

Real Infinite Stopper Mechanism that eliminates backlash of the rotor handle by the special
one-way clutch inside the body, enabling tight and highly accurate winding up.

Shower cleaning possible Can be washed with running water. (Maintenance according to the instruction
manual is required after cleaning)



X FIRE
Item
name
Gear
Ratio
Weight
(g)
Max Drag
(kg)
Line Capacity
Nylon Line(lb-m)
PE Line (PE-m)
Line Per
Handle
Turn
(cm)
Bearing Catalog
Price
Price
[JPY]
Ball Roller
2510PE-H 5.6 205 7 8lb-150m
12lb-100m
PE 1-200m
PE 1.5-150m
84 7 1 28,500 \21,375
2510RPE-H 5.6 220 7 8lb-150m
12lb-100m

PE 1-200m
PE 1.5-150m
84 7 1 29,500 \22,125
3012H 5.6 235 7 8lb-200m
12lb-150m

PE 1-280m
PE 1.5-200m
95 7 1 30,500 \22,875
