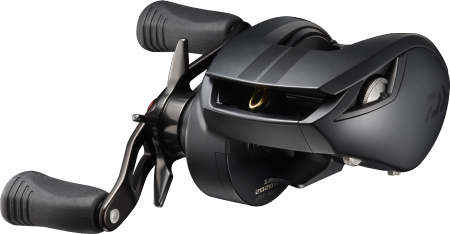

| Z 2020 BLACK LTD |
|
|
|
|
 |
| Z 2020 BLACK LTD |
|
|
|
|
|
|
Rapid biack tough conceptE flagship model |
| Ultra high precision super metal housing E Proud of exquisite power by
adopting tough dejigial gear, "Z" series which is called "lowest
reel of low-profile" from some heavy users. Easy going 16 lb. It is
possible to comfortably handle the above Fluoro Thread and PE line 3 and
above, and realize outstanding flight distance. Indeed it is a reel that
was born for monsters, powerfulness that does not lose power with a fight
with a super-large fish makes others bite. Not only the ranker bus, but
also the large rockfish of saltwater's blue thing and horn system can respond
with plenty. "BLACK LTD" ensures the maximum drag force 6 kg
by increasing the stickiness of the drag, comes with a chloroprene reel
bag. |

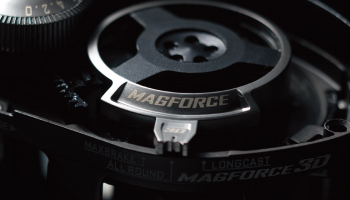

Magforth 3D - Dynamically adapts to the situation of the field with three
mode switching, fine tuning is also possible with 20 step magn Dial. |
There are limits to lures that can be handled with one unit, such as for
lightweight lure, for heavy lure, and far-range specifications. Although the
SV concept can be used comfortably from lightweight to heavyweight lure, it
is hard to say that it is the best in heavy thread and power game.
Therefore, it was possible to adjust the magnetic field from the magnet
side, making Daiwa's unique brake system "Magforth 3D" that made possible a
more complex brake setting.
There are three mode brake settings, and you can switch "MAX BRAKE"
"ALL ROUND" "LONG CAST" in order of strength. By changing
the distance between the magnetic field and the induction rotor, the braking
effectiveness becomes more complex, and it can be set more finely. As a
result, one can handle a wide range of lures & locations in the power
game at the time of using heavy yarn. Further fine adjustment is possible,
and it holds the potential to obtain the longest flight distance under
any condition. |
 |
|
 |

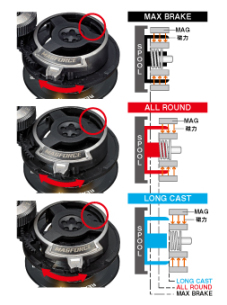

MAX BRAKE is closer to the spool,
LONG CAST is completely free. |
|
 |
Magfose 3D which can set MAG to 3 positions with one lever enables instant
response according to lure weight and situation. |
|

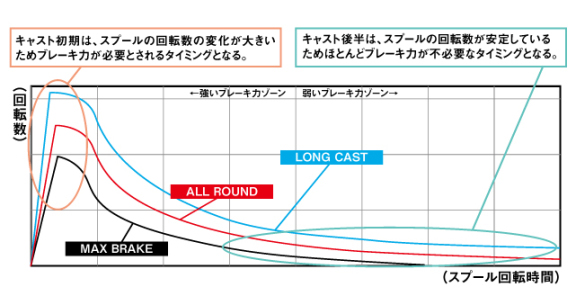

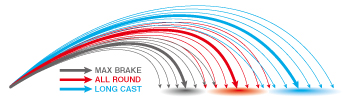

| ¡Magforth 3D cast ballistic image |
 |
|
MAX BRAKE, since the induction rotor is greatly contained in the magnetic
field from the beginning, it always faces the front from the casting half to
the latter half, the brake is always in effect, it is suitable for big bait,
hard to throw lure, headwind etc etc. ALL ROUND is suitable for middle class
lures in general. LONG CAST is the reverse, because it is affected only by
the magnetic field when the inductor rotor jumps out, it is suitable for
flying easy lure, tailwind etc. Some anglers prefer this setting for the
case where you want the second half elongation with pitching etc. |
|
|
|
|
|
|
|
| DAIWA TECHNOLOGY |
|
 |
¡Power gripping concept
"There is no power when fighting with a monster on a reel that is too
compact ..." Human words that only target monsters are heavy. Compact size
reels are important for operability, but in situations aimed at record-class
monsters, a completely different gripping concept is required on the reels.
It can be said that the silhouette of Z is a form with a certain intention,
that is, how to capture the initiative with fighting ... is the form which
stuck to it. By holding the entire reel together with the rod grip, you can
always take the initiative at fighting. |
|
 |
¡Super high rigidity super metal housing
The housing of the bait reel consists of three parts that support the spool,
consisting of a frame, a side plate, and a set plate. The housing can be
said to be another heart that supports cutting-edge high precision parts
such as tough dejig gear and real precision spool. The super high rigidity
super metal housing using the special aluminum alloy super metal which is
the ideal housing material developed by Daiwa makes the strong legend
unshakable. |
|
 |
.¡Tough digigear
.It is Tough Digigear gear which boasts precision several times higher
than
that of forged gear that produces high power. This is a further evolution of
Daiwa's original digital design technology "Digigear II", its
tooth surface
accuracy is ten times as much as the conventional one. With synergy effect
of powerful gear system and precision, torqueful and silky winding feeling
lasts long. It is a very heart-minded system that is necessary for Z with
power and speed exceeding common sense |
|
 |
¡Ultra lightweight ultra duralumin Real Precision Spool
Spool of bait reel is rotating parts of more than 30,000 rpm. Therefore, if
there is an error in the balance between the shaft of the spool and the
outer circumference, the spool will rampage during casting to damage the
cast feel, but also cause the distance to go down. A real precision spool
that was born in a manufacturing method that evenly machine cuts from the
left and right, realized a real precision spool several times as large as
the conventional one was always quiet in the palm of the angler and was
stable Distant throw performance. Ultra lightweight ultra-duralumin material
gives further distant casting performance and ability to respond to
lightweight lure, cast feel like to come off and supports exhilarating
casting pleasure. |
|
 |
¡Ultimate Tournament Drag
Eliminate the stickiness at the start of the drag effect, bring out the line
with smooth unevenness, and also have the maximum drag force that works as
much as tightening if it is tightened. Drag washer and grease which adopted
the new material, its performance is enhanced by enlarging the diameter. Due
to the waterproof system applied on it, it exhibits stable drag performance
under any circumstances. In addition to the click sound at the time of drag
adjustment, a click sound is generated even when the line is pulled out. The
sense of echo in hand is not only the sign of the situation where the line
was drawn but also brings new excitement to directly stimulate the brain if
a big thing hangs up. |
|
 |
¡Salt barrier tuff clutch
Fixation of a clutch which tends to occur when using a bait reel in sea
water is caused by salt water electrolysis, that is, corrosion due to a
potential difference between metals. This system is an epoch-making
insulating clutch structure born at the time of developing Ryouga, succeeded
in dramatically reducing troubles caused by electric contact. Also, a
synergistic effect with the tough & rigid clutch which has been greatly
enhanced as compared with the conventional one, which prevents the clutch
from returning unexpectedly due to momentum at casting is also taken. |
|
 |
¡High speed level wind
The trouble when the line is wrapped around fluff on the reel is remarkable
when using a thick fluorocarbon line or PE line. It is the high speed level
wind that slides at a speed that is double the actual speed of a bait reel
that drastically reduces such troubles. As a result, the trouble of the
needle thread biting into the lower thread on the winding surface is greatly
reduced, resulting in comfortable actual fishing performance. |
|
 |
¡Level wind distance from spool
The space until the line converges from the spool to the level wind has a
little margin compared to the conventional model and eliminates interference
with the frame as much as possible. A smooth line discharge realizes a cast
feel like rising up with no noise and blur. |
|
 |
¡Frictionless level wind
Excellent release performance of the line It is easy to pass through the
heavy nodule even when using the reader, a line guide shape conscious of the
large distant throw and a level wind system where the distance from the
spool is reduced to reduce the resistance at the line discharge.
|
|
|
|
|
|
|
|
|
