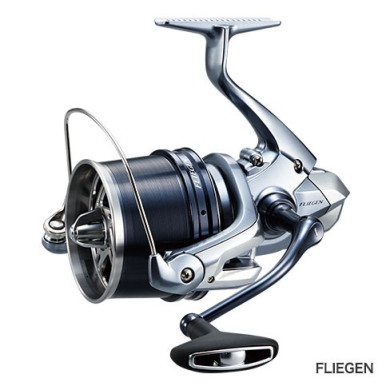

FLIEGEN |
|
|
FLIEGEN SD with Drag |
|
|
|
|
|
|
 |
|
 |
|
 |
| ■ X-PROTECT (line roller part) |
|
■ HAGANE body |
|
■ HAGANE gear |
Since a lighter turning performance
is required, a new waterproof
structure has been developed
specifically for it. By focusing
on the non-contact type
that does not impair the lightness
of rotation, and combining the
conventional water repellent
treatment with a labyrinth
structure that suppresses
water ingress, we have achieved
high waterproof performance
while being non-contact.
Due to its lightness of
rotation,it can also be used
for linerollers, and the durability
of the line roller bearing
has been greatly improved. |
|
By using lightweight and
highly rigidaluminum as
the material, the bending
and distortionof the reel
is firmly suppressed.
It protects delicate
gear meshing
and enables smooth reeling. |
|
Drive gear made by pressing
a massofmetal with a pressure
of about 200 tons and finishing
it with micronaccuracy without
cutting. Our uniquetechnology,
called precision cold forging,
produces highly accurate and
strong gears that enable
a smooth rolling texture. |
|
|
|
 |
|
 |
|
 |
| ■ X-SHIP |
|
■ G FREE BODY |
|
■ Parallel body |
Larger drive gear diameter,
optimal pinion gear layout,
and pinion gear bearing
support for two points.
By making the gear meshing
robustly with these,
the winding force
is maximized while maintaining
a light reeling. It enables
powerful fighting while
transmitting detailed
information about
changing water.
|
|
The worm shaft is located above
the drive gear, and a G-free body
with the center of gravity close
to you is adopted. It makes
the lightweight and lightweight
feel even lighter at the level of the
sensation level, and enables
aggressive fishing with excellent
operability. |
|
When casting, by keeping
the positionalrelationship
between the rod and reel
while keeping the positional
relationshipbetween
the rod and the reel parallel,
the spool center line
and rod can be parallel
so that a smooth line can
be released, leading to
a longer flight distance.
|
|
|
|
 |
|
 |
|
 |
| ■ CI4 + rotor |
|
■ Sand protector |
|
■ High speed drag |
A new carbon material
that evolved from the
lightweight carbon material
CI4 +.The lightness
of CI4 + is maintained,
but the rigidity and
durability during actual
fishing are greatly improved.
This allows the rotor to be
small and lightweight.
|
|
Prevents sand from entering
the spool inside on windy days.
(accessories) |
|
By adopting a special drag washer,
the drag force can be adjusted
from MIN to MAX with one rotation
of the knob. Also effective
for fishing poles. |
|
|
|
 |
|
 |
|
|
| ■ Line safety guard |
|
■ One piece bail |
|
|
Equipped with "line safety guard"
on the inside of the spool to
prevent the trouble of being
caught due to the thread
dropping. A new structure
with a silhouette around
the spool.
|
|
Succeeded in manufacturing
a seamlessly integrated veil.
Achieves a beautiful appearance
and is trouble-free.
|
|
|
|
|
| Specification table |
Item
name |
Gear
ratio |
Handle 1
rotation
(cm) |
Weight
(g) |
Max
drag
(kg) |
Line capacity |
Bearing |
Catalog
Price |
Price
[JPY] |
Product
Code |
Parts
Scheme |
| Nylon Line (lb-m) |
| PE Line (PE-m) |
SA-BB |
Roller |
FLIEGEN 35
type 4lb |
3.5 |
83 |
440 |
20 |
2.4lb-300m
3.2lb-250m
4lb-200m |
8/1 |
46,000 |
JPY 39,468 |
03656 |
 |
PE 0.6-250m
PE 0.8-200m
PE 1-160m |
FLIEGEN 35
type 6lb |
3.5 |
83 |
440 |
20 |
4.8lb-250m
6lb-200m
8lb-150m |
8/1 |
46,000 |
JPY 39,468 |
03657 |
|
PE 0.8-250m
PE 1-200m
PE 1.2-165m |
FLIEGEN SD 35
type 12lb
with Drag |
3.5 |
84 |
490 |
20 |
8lb-300m
12lb-200m
16lb-150m |
8/1 |
48,000 |
JPY 41,184 |
03658 |
|
PE 1.5-250m
PE 2-200m
PE 3-130m |
|
|
|
|
|
