By reviewing the overall design and making it significantly compact,
it has become the lightest model in the Shimano Twin Drag series.
In fishing fishing poles that are often used with multiple rods,
the merit of lightness is immeasurable. Still, it maintains
a solid high rigidity."HAGANE gear", "HAGANE body",
"screw-in handle"
and full-scale specifications necessary and sufficient
for exchanging with big ones are second to none.
It is also equipped with the "X-SHIP"
that is light and provides smooth reeling even under heavy load.
Synergistic effect with a large hollow knob that fits comfortably
in your hand, providing smooth and powerful winding power.
"Parallel body" to reduce the thread hitting the rod
when casting, Shimano's original "Twin Drag",
all the advanced Shimano technology for throwing, waiting, winding and
actual fishing. It comes with a spare spool of 1 rank
thick number that can correspond to various situations.
* Note: When installing the 06 Power Aero spool on the 13 Power Aero,
remove the spool washer and adjust the bobbin shape.
|
 |
Instantly replay drag settings in waiting state.
Instant start twin drag that is indispensable for fishing big fish aiming with a placing rod |
|
Not only can the drag be turned ON / OFF instantly, but you can also adjust
the drag setting while waiting for Atari according to the conditions
of the target fish and fishing area. When aiming for large squirrels
with a standing rod, or aiming for maggots and flounder using live bait,
the drag setting in the waiting state is set loosely so as not to make
the target fish feel uncomfortable. Also, if you want to set the drag
a little stronger, such as fishing spots where the tide is fast,
aiming for red sea bream or korodai, set the waiting drag setting to a
strong one.
It is very troublesome to make fine adjustments to the drag settings
while waiting for Atari after each cast. In addition, the rework becomes
worse,
causing trouble. Instant start twin drag eliminates such annoyance and
wobbling.
|
 |
Operating procedure 1
First, loosen the A drag knob.
Turn the B preset knob according
to the target fish and the situation
of the fishing ground, and set the drag setting
in the desired waiting state for Atari. This is OK |
|
Operating procedure 2
When casting, tighten the A drag knob and throw.
(Tightens instantly)
|
|
Operating procedure 3
After throwing, if you loosen the A drag knob,
it will instantly return to the waiting drag set earlier.
* If you adjust the B preset knob first,
you can instantly play the drag setting
in the waiting state, that is the instant start twin drag. |

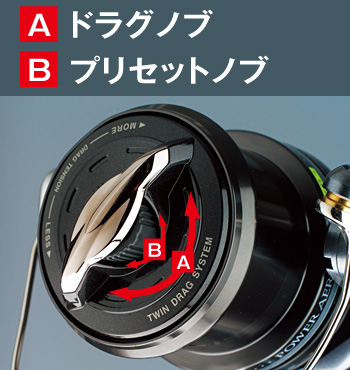

A DRAG Knob
B Preset Knob |
|
|
|
| Specification table |
Item
name |
Gear
ratio |
Handle 1
rotation
(cm) |
Weight
(g) |
Max
drag
(kg) |
Line capacity |
Bearing |
Catalog
Price |
Price
[JPY] |
Product
Code |
Parts
Scheme |
| SPOOL |
Nylon Line (lb-m) |
| PE Line (PE-m) |
SPAER
SPOOL |
Nylon Line (lb-m) |
SA-BB |
Roller |
| PE Line (PE-m) |
POWER AERO
SPIN POWER
type 12lb |
3.5 |
84 |
565 |
19.0 |
12lb
spool |
8lb-300m 12lb-200m
16lb-150m |
7/1 |
40,800 |
JPY 32,313 |
03101 |
 |
PE 1.5-250m PE 2-200m
PE 3-130m |
20lb
spool |
16lb-250m 20lb-200m
22lb-170m |
PE 3-225m PE 4-175m
PE 5-140m |
POWER AERO
SPIN POWER
type 20lb |
3.5 |
84 |
565 |
19.0 |
20lb
spool |
16lb-250m 20lb-200m
22lb-170m |
7/1 |
40,800 |
JPY 32,313 |
03102 |
|
PE 3-225m PE 4-175m
PE 5-140m |
30lb
spool |
22lb-275m 30lb-200m
35lb-150m |
PE 5-225m PE 6-185m
PE 8-140m |
POWER AERO
SPIN POWER
type 30lb |
3.5 |
84 |
565 |
19.0 |
30lb
spool |
22lb-275m 30lb-200m
35lb-150m |
7/1 |
40,800 |
JPY 32,313 |
03103 |
|
PE 5-225m PE 6-185m
PE 8-140m |
35lb
spool |
30lb-250m 35lb-200m
40lb-160m |
PE 6-235m PE 8-175m
PE 10-140m |
|
|
|
|
|
|
