Equipped with a tough core solid body and
low inertia Magnum Light Spool III.
A new frontier for versatile tiles that
achieves strength, lightness, and ease of pulling out. |

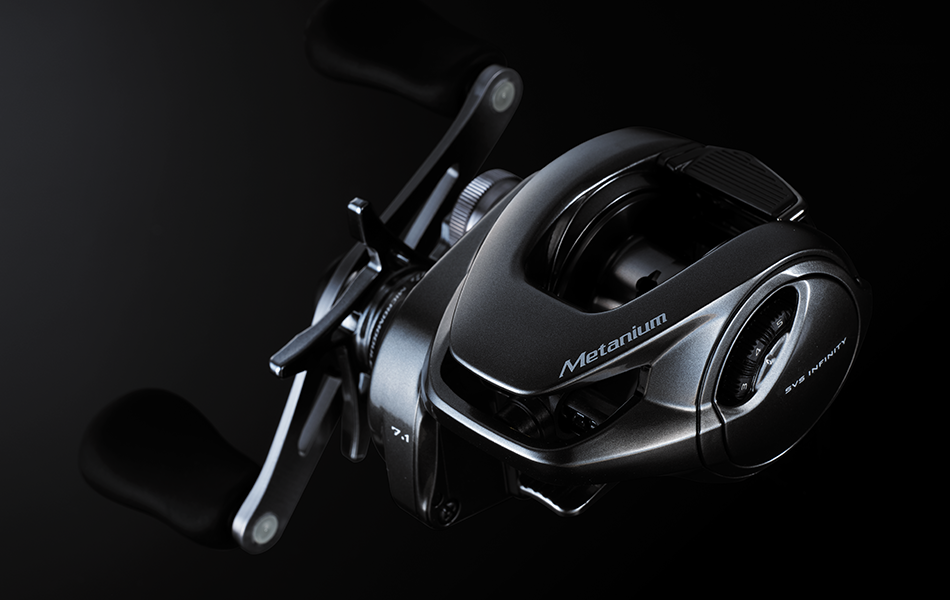

| Metanium |
It is a lightweight all-rounder with high operability
and a wide range of defense, equipped with
a magnesium solid core solid body,
and a Magnum Light Spool III that realizes
a light rising and easy extension. It improves
the operability and adaptability to tough fishing,
and can handle winding, shooting
and light rigs technically. Furthermore,
while maintaining its light weight,
it has an ultra-high-strength brass drive gear
and is also tough. |
| Technical characteristics |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
 |
 |

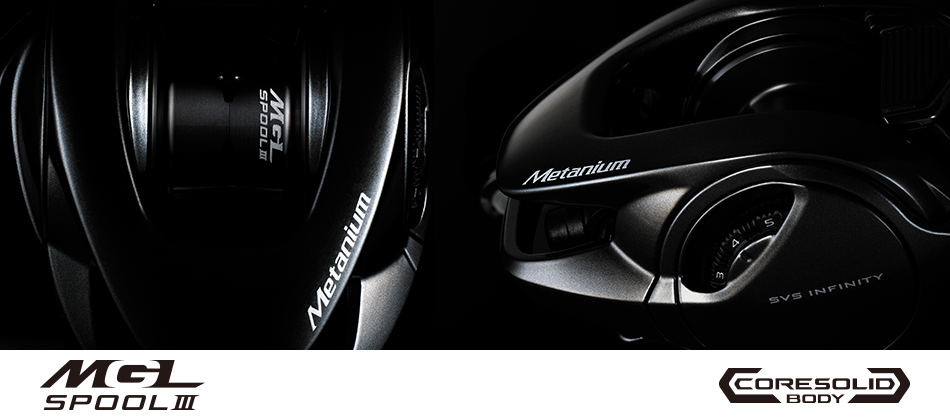

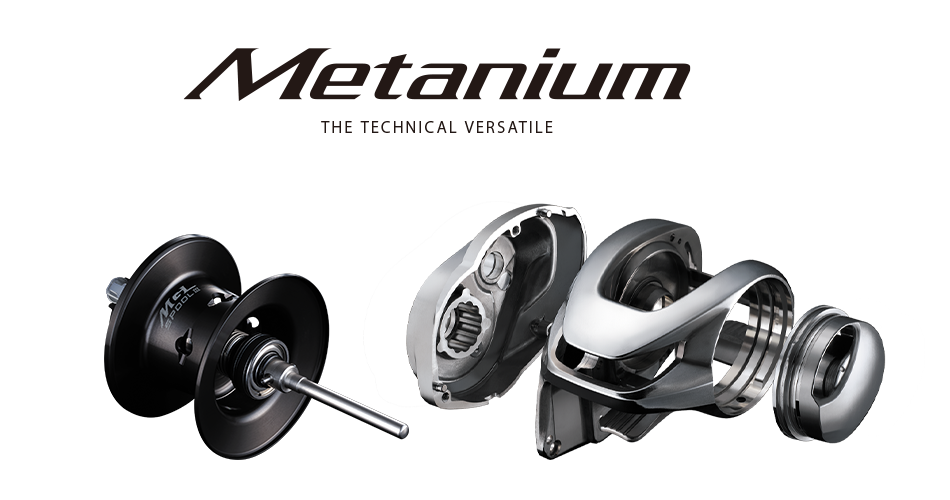

The first fusion of innovation.
The "Magnum Light Spool III" (first used in 19 Antares) has achieved unprecedented low inertia
by significantly reducing the wall thickness. The main frame and level
wind protector are
integrally molded to achieve high rigidity while maintaining a low profile
(core solid body)
(first adopted in 18 Bantam MGL). For the first time with NEW METANIUM,
these two innovative technologies have been condensed into one unit.
The Magnum Light Spool III, which boasts a light start-up and overwhelmingly
good escape,
is housed in a highly rigid and compact core solid body to support "lighter
lures"
and "to attack further into the depth" Low Increased ballistic cast growth,
and acquired the strength to adapt to "stronger fishing". Also,
Bantam MGL used aluminum
for the main frame and side plates, but NEW Metanium adopted magnesium.
The compact and easy-to-handle core solid body has been further reduced
in weight.
While maintaining the "high maneuverability brought about by lightness",
which is also the identity of Metanium, we have improved our ability to
respond
to more powerful and technical fishing. More technical, more all-round.
NEW Metanium repaints the Versatile standard again.
|
|
 |
|
Its sharp operability can be used in any scene.
Since Metanium is a Metanium, it can be said that its body size, shape,
and lightness make it easy and sharp to operate, and versatility.
In NEW METANIUM, the drive gear has been changed from aluminum
to ultra-high strength brass in pursuit of toughness. Combined
with the adoption of the core solid body, it has improved adaptability
to
"stronger fishing" than before, but the weight is the same as
the previous model while increasing rigidity. Moreover,
since the size has been made compact, the well-established operability
is
even sharper. NEW Metanium that has dramatically improved
the ability as an all-under. It is a machine that responds to a variety
of angler techniques, which are produced in various situations. |
|
 |
The weight of the single gear has slightly increased due to the adoption
of ultra-high-strength brass drive gear,

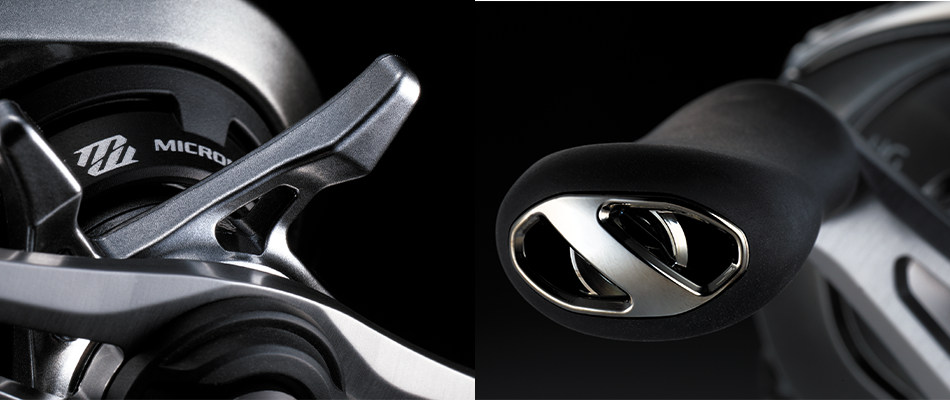

but the increase is offset by reviewing the internal and external parts
such as the star drag and handle knob.
While improving the durability of the reel, we kept 175g, which is the
same weight
as the previous model 16 Metanium. |
|
|
| Feature |
 |

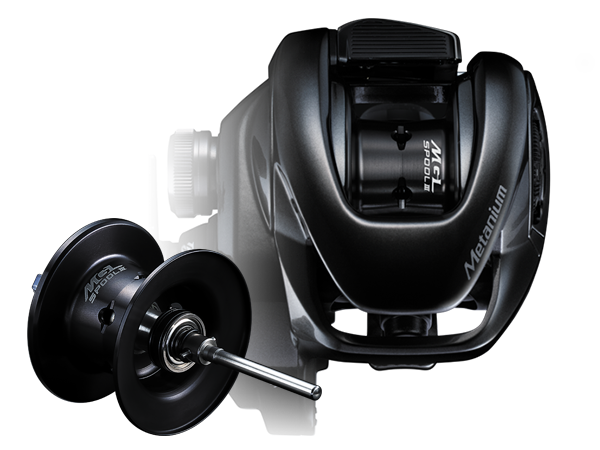

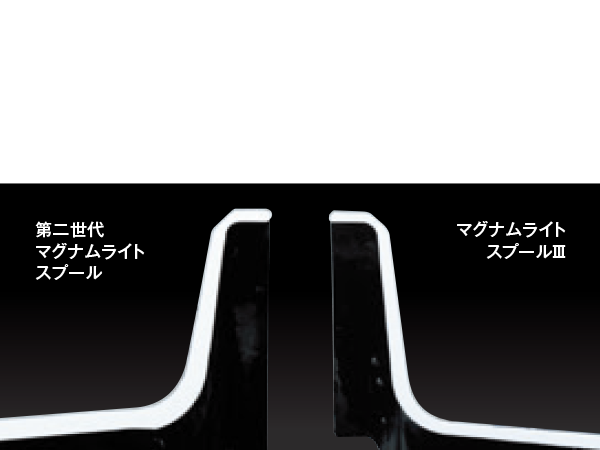

Ultra-thin spool that thoroughly pursues low inertia.
As if crawling on the surface of the water, aim and shoot at will.

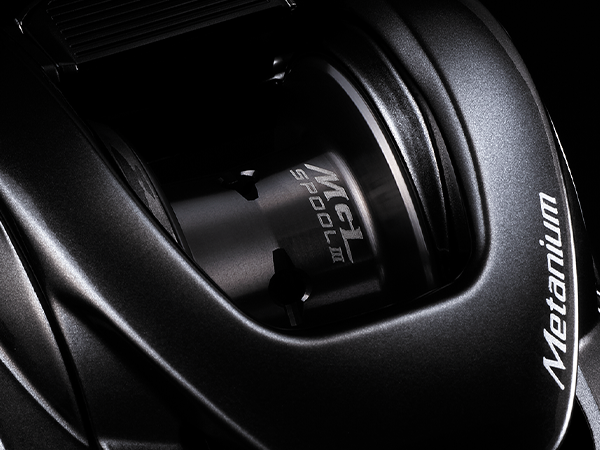

The state-of-the-art Magnum Light Spool III has evolved from
the first-generation Magnum Light Spool to the second-generation Magnum
Light Spool.
We challenged to further reduce the thickness of the spool,
and achieved lower inertia than before without compromising durability.
In addition, the spool installed in Antares Metaniumium has a narrow (narrow)
shape
with a width of 19 mm against an outer diameter of 34 mm,
resulting in a low inertia of about 15% compared to the second generation
magnum light spool.
Achieved. In addition to long-distance casting performance,
it has achieved a lighter start-up that far exceeds conventional performance,
a refreshing cast feel that extends forever, and a great improvement
in trouble avoidance performance. |
 |
 |
|
 |

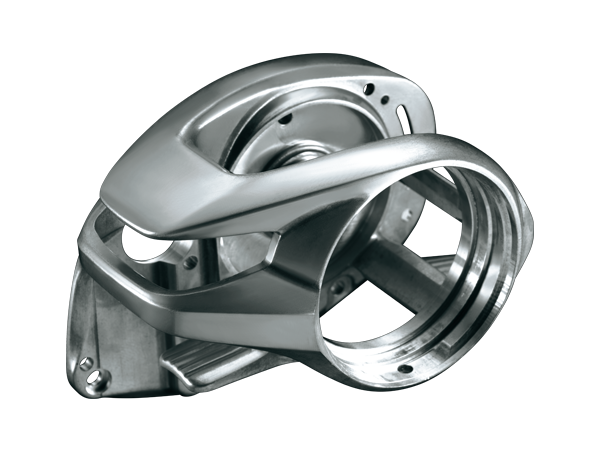

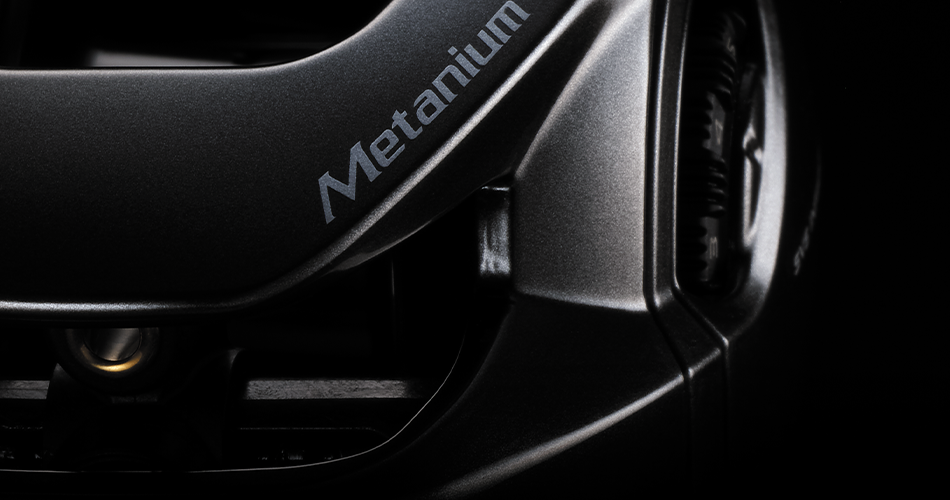

Metal integrated body that achieves both high rigidity and compact size.
|
| Normally, the level wind protector and side plate, which are made separately
from the frame, are integrally molded with metal. It boasts high rigidity
and a compact body size that is easy to palm. A tough body that does not
make noise even under heavy loads, does not easily bend when interacting
with large items or pulling out the fish from the cover, achieving a stable
winding feeling. A new, highly reliable body structure that allows you
to safely power fight. |
 |
|
|
|
 |

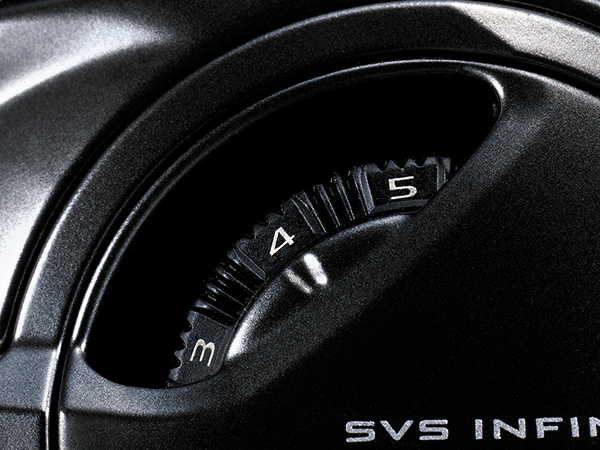

Widely applicable by adjusting the external dial.
The next-generation centrifugal brake has evolved further.
Centrifugal brake SVS that combines a light start-up and good growth,
cast accuracy that shoots deep inside the point, and long-distance performance.
The latest SVS ∞ (Infinity) has a wide range of brake adjustment,
and it can support a wide range of situations by adjusting the external
dial only
(internal brake shoes: when 4 brakes are ON). In addition, finer brake adjustment
is possible by adjusting the internal brake shoe.
|
| *4 brake shoes are on when shipped. |
|
 |
 |
| Basically, all four brake shoes can be turned on. |
The braking force can be adjusted in most situations
by using only an external dial. |
|
 |

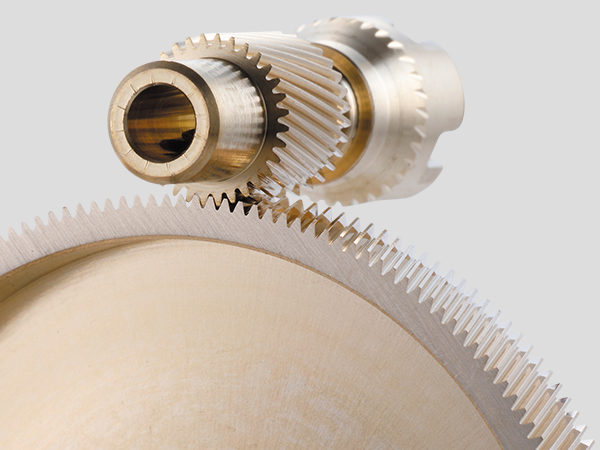

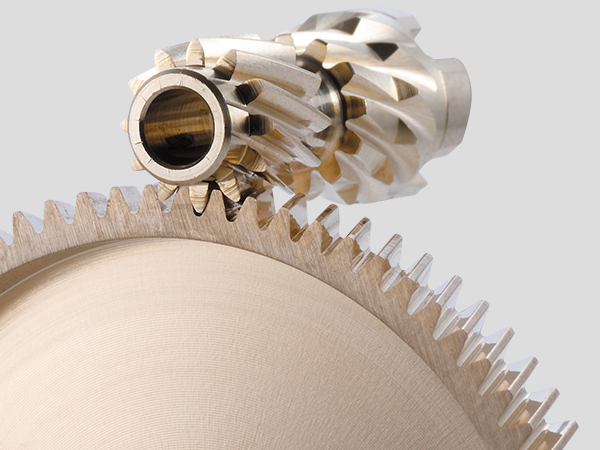

The ultra-small precision gear and elaborate body housing realize a “silky”
winding feeling that
you have never experienced before.In comparison with the conventional gear,
the vibration level
is less than half (compared to our company), and the number of meshing teeth has increased,
ensuring strength that exceeds the conventional gear. Shimano original
gear system
that achieves both a smooth feel and strength. |
|
|
 |
 |
| Micro module gear |
Normal gear |
|
 |
 |
By completely revising the cutting method,
the spool accuracy has been dramatically
improved and the quietness during casting
has also been improved (compared to our company)
The smooth rotation without blur creates
a further flight distance. |

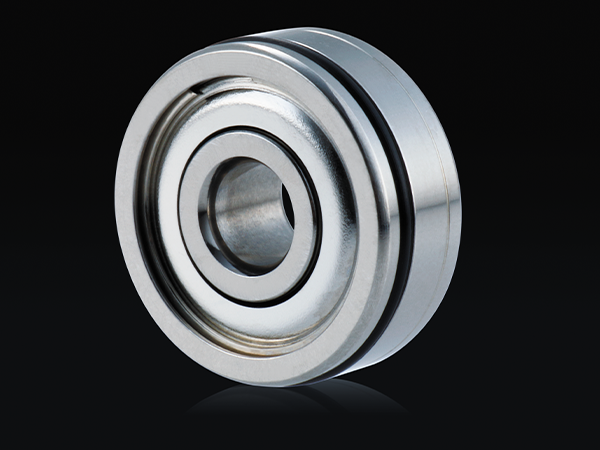

By inserting O-rings inside and outside
the bearing and outside the bearing,
the degree of close contact with the shaft
and frame is increased and rattling is reduced.
Eliminating the rotation loss, it has realized
high quietness and smooth feeling. |
 |
 |
|
|
|
|
|
|
|
| SPEC |
Item
name |
Gear
ratio |
Handle 1
rotation
(cm) |
Weight
(g) |
Max
drag
(kg) |
Line capacity |
Bearing |
Catalog
Price |
Price
[JPY] |
Product
Code |
Parts
Scheme |
| Nylon Line (lb-m) |
| RIGHT |
6.2 |
66 |
175 |
5.0 |
12lb-100m
14lb-90m
16lb-80m
20lb-65m |
10/1 |
44,100 |
JPY 34,927 |
04112 |
 |
| LEFT |
6.2 |
66 |
175 |
5.0 |
12lb-100m
14lb-90m
16lb-80m
20lb-65m |
10/1 |
44,100 |
JPY 34,927 |
04113 |
|

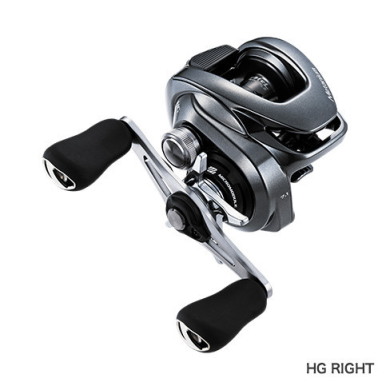

| HG RIGHT |
7.1 |
76 |
175 |
5.0 |
12lb-100m
14lb-90m
16lb-80m
20lb-65m |
10/1 |
44,100 |
JPY 34,927 |
04114 |
|
| HG LEFT |
7.1 |
76 |
175 |
5.0 |
12lb-100m
14lb-90m
16lb-80m
20lb-65m |
10/1 |
44,100 |
JPY 34,927 |
04115 |
|
| XG RIGHT |
8.1 |
86 |
175 |
5.0 |
12lb-100m
14lb-90m
16lb-80m
20lb-65m |
10/1 |
44,100 |
JPY 34,927 |
04116 |
|
| XG LEFT |
8.1 |
86 |
175 |
5.0 |
12lb-100m
14lb-90m
16lb-80m
20lb-65m |
10/1 |
44,100 |
JPY 34,927 |
04117 |
|
|
|
