Shimano STRADIC (Japanese Domestic Fishing Tackle shop)

top

Evolution doesn't stop.

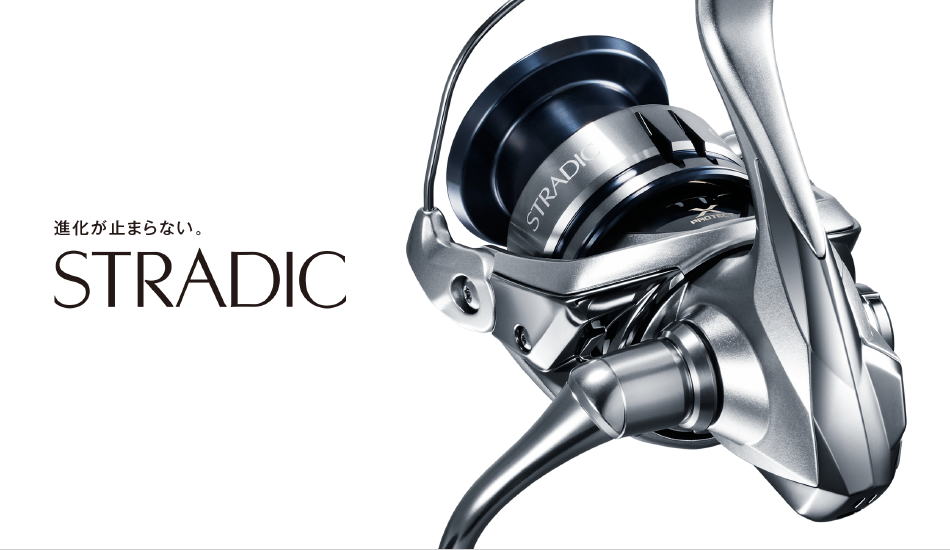

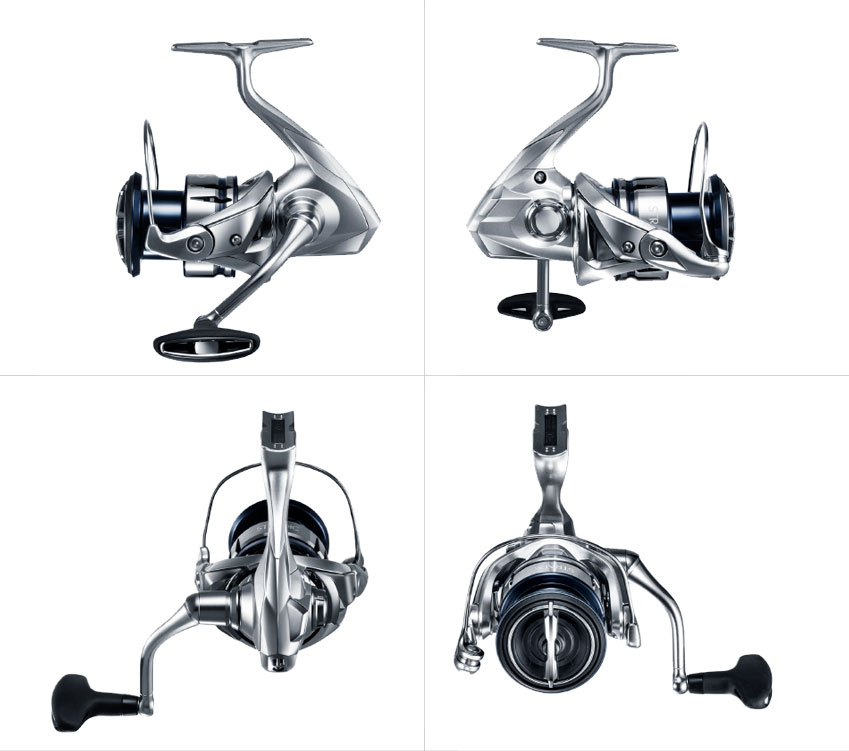

STRADIC

Further refine the basic performance.
The evolution that can be felt comes
to fruition here.

The basic performance of spinning reels,
"winding," "durability," and "flying,"
has evolved further. Pursuing reeling
performance approaching the flagship
by installing Micro Module Gear II
and silent drive. In addition, by installing
a new HAGANE gear that follows
the high-end model and X protect
of the waterproof mechanism,
it has become a stronger and more
durable model than the conventional model.
Furthermore, casting performance has been
improved by adopting a long stroke spool,
which is the first in its class. It enables you
to approach points that the lure has never reached.
With an abundant lineup, we have evolved
to approach the flagship of Stradic, which is active
in a wide range of scenes from light targets
to big sea fish.

Technical characteristics

Lineup

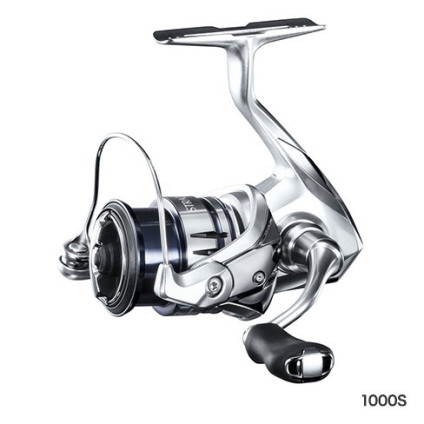

1000S # 1000 size standard model Φ40mm small diameter spool allows smooth thread removal of small butt guide rods. Nylon 3lb-100m line capacity is a standard model that can be used for anything from light salt to trout in managed fishing areas. [Reference target fish / fishing species] Light salt in general, tube fishing trout, etc.	C2000S C2000 series basic model A standard model of light salt and tube fishing trout with a # 1000 size body and rotor equipped with a # 2000 large diameter spool. Nylon 4lb-100m line capacity supports a wide range of fishing. If you want to start light salt and tube fishing trout, start with this model. [Reference target fish / fishing species] Light salt in general, tube fishing trout, etc.	C2000SHG Optimal model for mountain stream trout High gear model of C2000S. This model is the best if you want to make the lure act in the flow. With a 45mm handle specification, the winding weight due to high gear is also reduced. Nylon 4lb-100m line capacity supports a wide range of fishing up to light salt. [Reference target fish / fishing species] Mountain trout, light salt in general, etc.	2500S Standard model for bass If you use it for bass fishing, start with this model. With normal gear ratio specifications, it is ideal for mainly developing slow fishing. Fluoro 5lb-100m line capacity can be used up to 6lb. [Reference target fish / fishing species] Bus, Egging, etc.


2500SHG 2500S high gear model It can be used from bass to mainstream trout. # 2500 series high gear standard. It is a model that is excellent in bass fishing that emphasizes rework and lure operation in the flow, and it is a model that can handle bass, trout, egging, light salt, etc. with one unit. [Reference target fish / fishing species] Bass, rainbow trout, etc.	C3000 Versatile model that can be used for anything from freshwater to salt Line capacity that can be used from nylon to PE. With 2 sets of drag, drag power is sufficient. A versatile model for all types of fishing. The normal gear ratio specification is ideal for slow fishing and fishing that requires hoisting torque. [Reference target fish / fishing species] Versatile	C3000HG Versatile high gear model that can be used for anything from freshwater to salt C3000 series standard model. A versatile model with high gear specifications that can handle any situation. If you are worried about this size, I recommend this model first. [Reference target fish / fishing species] Versatile	C3000XG C3000 series fastest winding model Despite its compact size, it is equipped with a winding speed of 94 cm per handle. This model is ideal for fishing that requires high-speed winding and fishing that emphasizes rework. [Reference target fish / fishing species] Versatile


3000MHG Sea bass standard model 3000 model equipped with a # 2500 series compact spool and rotor on a # 4000 series body. It fits anglers who demand winding sensitivity by thoroughly reducing the weight of the tackle and making the rotor compact while seeking the powerful winding of # 4000. The spool is compatible with 2500 and C3000, making it highly versatile. [Reference target fish / fishing species] Sea bass, cherry salmon, etc.	4000 # 4000 size deep groove standard model With a powerful hoisting force coming from low gear and a deep groove spool that supports nylon, it can handle unexpected big things even though it is # 4000. This model is ideal for anglers who place importance on hoisting power and do not want to move the lure quickly. [Reference target fish / fishing species] Sea bass, cherry salmon, light jigging, rock fish, etc.	4000XG Surf fishing standard model If you want to surf, this model is the first. With the overwhelming line slack recovery ability that comes from the winding speed of 1 m per rotation of the handle, you can instantly act on the lure without time loss even when the lure is pushed greatly toward you by a big wave or when the line is swept by a crosswind . .. It is also ideal for blackfin seabass. [Reference target fish / fishing species] Surf, blackfin seabass, light shore jigging, light shore casting, etc.	4000MHG # 4000 size standard high gear model Just the right winding speed, not too slow and not too fast. A versatile model that can be used for a wide range of fishing species. Equipped with M spool, ideal for fishing using PE line No. 1 to No. 1.5. Recommended for surf anglers who are concerned about the weight of the XG. [Reference target fish / fishing species] Surf, sea bass, cherry salmon, light jigging, rock fish, etc.


C5000XG Models for light shore jigging and light shore casting Equipped with a round handle knob, long handle, and carbon cross drag washer, the # 5000 is tough and compact, targeting blue objects. Even if it is not as waterproof and strong as the SW5000, this model is for operability and weight reduction. [Reference target fish / fishing species] Light shore jigging, light shore casting, etc.

Reeling performance that approaches
the flagship model as much as possible

Feature


Micro Module Gear II Light and smooth. Gem gear feel. Micro module gear II evolved by the most advanced tooth surface design and manufacturing technology unique to Shimano. We reviewed the design of each gear t ooth and each tooth surface to pursue the ideal tooth shape. We have also achieved a reduction in noise and an improvement in smooth gear feeling.	Silent drive A tranquil sense of unity with thorough attention to detail. The basic design of the entire body and drive-related parts have been reviewed one by one, and minute backlash, gaps, and shaking between the parts have been thoroughly eliminated. There are various areas to be improved, such as drive gears, worm shafts, worm shaft pins, and worm shaft gears. A new dimension of smooth rotation performance and quietness have been achieved.	HAGANE gear To a stronger gear system. HAGANE gear that has been installed in many Shimano spinning reels. NEW Stradic, which has secured sufficient durability by its own precision cold forging technology, is equipped with a newly designed HAGANE gear equivalent to the upper model. As a result, we have achieved one size higher reel gear strength.	HAGANE body Highly rigid body that can withstand unexpected impacts. Spinning reels, which are subject to a high load when wound up, are required to have higher rigidity for the entire body including the reel foot. The HAGANE body uses a lightweight metal body to reduce anxiety about impact in harsh environments and power loss due to bending and twisting. With overwhelming toughness, he continues to support the battle of anglers.


X PROTECT Both smoothness and waterproofness cannot be surrendered. By combining the water-repellent effect and the labyrinth structure, waterproof performance that can withstand water pressure is realized without impairing the lightness of rotation. The mounting location is the line roller part and the body (roller clutch) part. In particular, the durability of line rollers is more than five times higher (compared to our conventional products).	Long stroke spool The long stroke spool, which is installed only in Stella and 19 Vanquish, is also installed in NEW Stradic. Cast performance has also approached the flagship. Achieves a flight distance increase of about 5% compared to the conventional model with C3000 size. (According to our flight distance test in the dome) NEW Stradic may deliver to that point where the lure does not always reach.	AR-C Spool A spool that has been made lighter by Shimano's original processing technology in order to achieve both the two purposes of "no trouble" and "extending the flight distance". The "line rectification effect" due to the special shape of the spool ring adjusts the line emission to the best condition.	Optimal selection of washer material Felt material that emphasizes good start is used for models with 1 set drag of # 2500S or less, and cross carbon washers with excellent wear resistance are used for models with 2 sets of drag of # C3000 or more.


New shape line clip Uses a new shape clip that is easy to remove and has improved holding power. We support a wide range from Ester No. 0.2 to 40 pounds of fluorocarbon.	Newly designed bale opening and closing mechanism Pursuing a smooth feeling when opening. Wide opening and closing angle and improved feathering. It also prevents unexpected bale return.	ONE-PIECE BAIL An integrally molded ultra-fine veil that has achieved extremely hard and scratch-resistant strength by injecting the best of cold forging technology. The structure without steps has overcome problems such as the line getting caught.	Low friction roller clutch NEW Stradic is equipped with a low friction and compact roller clutch. The resistance is suppressed and the rotation is lighter than the conventional model.


G free body Succeeded in bringing the center of gravity of the entire reel closer to hand by arranging sliding functional parts for moving the spool back and forth at the top of the reel body. This improves the sense of unity with the rod, reduces fatigue caused by casting, and improves rod operability.	Screw-in handle As with the higher-end models, a screw-in type handle fixing structure is adopted. Direct winding without play is possible.

Specification table

Item name	Gear ratio	Handle 1 rotation (cm)	Weight (g)	Max drag (kg)	Line capacity Nylon Line (lb-m) Fluorocarbon Line(lb-m) PE Line(PE-m)	Bearing		Catalog Price	Price [JPY]	Product Code	Parts Scheme
Item name	Gear ratio	Handle 1 rotation (cm)	Weight (g)	Max drag (kg)		BB	roller	Catalog Price	Price [JPY]	Product Code	Parts Scheme
1000S	5.1	64	185	3.0	2.5lb-140m 3lb-100m 4lb-90m 2lb-170m 3lb-95m 4lb-75m PE 0.6-140m PE 0.8-100m PE 1-70m	9/1		25,500	JPY20,196	04026
C2000S	5.1	69	185	3.0	3lb-125m 4lb-100m 5lb-75m 3lb-110m 4lb-85m 5lb-65m PE 0.6-150m PE 0.8-110m PE 1-80m	6/1		25,500	JPY20,196	04013
C2000SHG	6.1	82	185	3.0	3lb-125m 4lb-100m 5lb-75m 3lb-110m 4lb-85m 5lb-65m PE 0.6-150m PE 0.8-110m PE 1-80m	6/1		25,500	JPY20,196	04014
25000S	5.3	78	220	4.0	5lb-110m 6lb-95m 8lb-70m 4lb-130m 5lb-100m 6lb-80m PE 0.6-200m PE 0.8-150m PE 1-120m	6/1		26,000	JPY20,592	04016
2500SHG	6.0	89	220	4.0	5lb-110m 6lb-95m 8lb-70m 4lb-130m 5lb-100m 6lb-80m PE 0.6-200m PE 0.8-150m PE 1-120m	6/1		26,000	JPY20,592	04017
C3000	5.3	78	225	9.0	10lb-180m 12lb-150m 16lb-100m 10lb-160m 12lb-130m 16lb-100m PE 1-400m PE 1.5-270m PE 2-200m	6/1		26,800	JPY21,225	04018
C3000HG	6.0	89	225	9.0	10lb-180m 12lb-150m 16lb-100m 10lb-160m 12lb-130m 16lb-100m PE 1-400m PE 1.5-270m PE 2-200m	6/1		26,800	JPY21,225	04019
C3000XG	6.4	94	225	9.0	10lb-180m 12lb-150m 16lb-100m 10lb-160m 12lb-130m 16lb-100m PE 1-400m PE 1.5-270m PE 2-200m	6/1		26,800	JPY21,225	04020
3000MHG	5.8	86	245	9.0	8lb-130m 10lb-110m 12lb-85m 8lb-110m 10lb-90m 12lb-80m PE1-190m PE1.2-150m PE1.5-120m	6/1		27,800	JPY22,017	04021
4000	5.3	87	280	11.0	14lb-170m 16lb-150m 20lb-125m 12lb-190m 16lb-145m 20lb-115m PE 1-490m PE 1.5-320m PE 2-240m	6/1		27,800	JPY22,017	04022
4000MHG	5.8	95	280	11.0	10lb-160m 12lb-120m 16lb-90m 12lb-110m 16lb-90m 20lb-65m PE 1.2-250m PE 1.5-200m PE 2-150m	6/1		27,800	JPY22,017	04023
4000XG	6.2	101	280	11.0	14lb-170m 16lb-150m 20lb-125m 12lb-190m 16lb-145m 20lb-115m PE 1-490m PE 1.5-320m PE 2-240m	6/1		27,800	JPY22,017	04024
C5000XG	6.2	101	295	11.0	16lb-190m 20lb-150m 22lb-125m 16lb-170m 20lb-135m 22lb-115m PE 1.5-400m PE 2-300m PE 3-200m	6/1		28,500	JPY22,572	04025
* XG = extra high gear specification, HG = high gear specification, M = medium deep spool specification, C = compact body. * There is no stopper switching mechanism.
